Open manualsIndol EcoSave C
Heat pump water heater

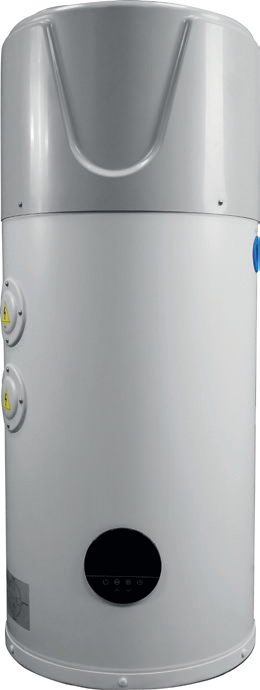

Indol EcoSave C100 / C160
A compact cylindrical heat-pump water heater for wall or floor installation. Choose C100 or C160 to suit your preferred tank volume.
Recommended price 19 995 kr incl. VAT
100 LTank volume
3,32COP · warm climate
A+Energy class
MLoad profile
- Article number
- 303
- RSK number
- 693 60 21
Technical specifications
C100 · Current product sheet with verified model data for C100 and C160.
- Article number
- 303
- RSK number
- 693 60 21
- Tank volume
- 100 L
- Tank material
- Enamelled steel
- Insulation
- PUR
- Approved pressure
- 10 bar
- COP · average climate
- 2,73
- COP · warm climate
- 3,32
- Energy class
- A+
- Load profile
- M
- Heating time · average climate
- 4:36 h:min
- Heating capacity
- 1 600 W
- Ambient air · operating range
- −5 … +43 °C
- Max. airflow
- 240 m³/h
- Sound outdoors / indoors at 2 m
- 50 dB(A)
- Refrigerant
- R290 / 0,15 kg
- Connected power
- 500 W
- Immersion heater
- 1 500 W
- Electrical connection
- 230 V ~ 50 Hz
- Installation
- Wall/floor, indoors
- Overall height
- 1 230 mm
- Diameter
- 510 mm
- Plumbing connection
- R20 inv. (3/4 tum)
Important for floor-stand installation
Leave at least 31 cm of clear height between the bottom of the heater and the floor for magnesium-anode replacement, including wall mounting.
When placing EcoSave C100 or C160 on the floor, the tall stand, article 812, is required to allow inspection and replacement of the magnesium anode.
Shop tall stand and accessoriesDocuments
EcoSave C100 and C160
Current product sheet with verified model data for C100 and C160.
EcoSave C100 and C160 use the Smart Life app. The PV range's Hitemp app guide does not apply to these models.
